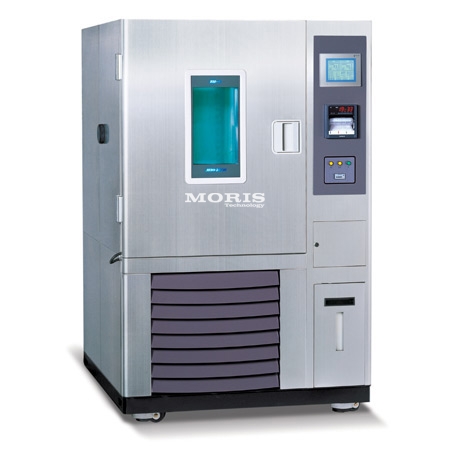

Chambers TC
The series provide two variations in temperature range of -35 to 150 °C and -60 to 150 °C ,
and six capacities of 180L, 300L, 408L, 800L, 1000L, 1500L.
and six capacities of 180L, 300L, 408L, 800L, 1000L, 1500L.
Description
- Standard environmental test. chambers
- High quality 304 stainless steel exterior and interior.
- Casters for easy mobility when installing or moving environmental test chamber.
- Convenient maintenance - available to check total operating time.
- Spacious chamber volume maximum capacity of 1500L.
- Choose from 6 different model chambers based on size.
- The series provide two variations in temperature range of -35 to 150 °C and -60 to 150 °C ,
- and six capacities of 180L, 300L, 408L, 800L, 1000L, 1500L.
- Unique door lock & trim.
- Vice lock type door and foam silicone packing to ensure a perfect seal.
- Door open warning alarm.
- Inner door.
- Optional inner glass door comes with four holes to handle samples inside the chamber (Except for 800L and 1500L)
- Ventilation.
- Ventilation vent is located at the upper right side of the unit.
- Chart recorder. (optional)
- 6-point dots type recorder with digital display.
- Viewing window for observation.
- A Tempered glass window provides a clear view of samples in the chamber, beneficial during testing.
- Fluorescent lighting source included.
- Cable port for external probes or wires.
- 50mm diameter cable port comes standard on the left side of the unit.
- Additional 50mm or 80mm diameter cable ports can be custom ordered.(Optional)
Safety functions
- Leakage breaker for power supply.
- Over current protector.
- Overheat protectors.
- Switch-off after alarm for over heating.
- Door opening alarm.
- Vice lock door type locking mechanism.
Specifications
| Model | TC-G-180 | TC-G-300 | TC-G-408 | TC-G-800 | TC-G-1000 | TC-G-1500 | |
| Chamber volum(L/cu ft) | 180 / 6.4 | 300 / 10.6 | 408 / 14.4 | 800 / 28.3 | 1000 / 35.3 | 1500 / 53.0 | |
| Control system | Cooling fuzzy control system | ||||||
| Controller | Programmable, Touch screen type controller (5.7" B/W monitor) | ||||||
| Temperature | Range(°C / °F) | -35 to 150 / -31 to 302 | |||||
| Fluctuation1)(±°C / °F) at 100? |
0.2 / 0.36
|
0.1 / 0.18
|
|||||
| Variation1)(±°C / °F) at 100? |
0.9 / 1.62
|
1.0 / 1.80
|
0.8 / 1.44
|
0.4 / 0.72
|
0.5 /0.9
|
0.5 / 0.9
|
|
| Time | Heating-without humidity(Min.) |
50min, -35°C to 120°C (-31°C to 248°C ) |
60 From -35°C to 120°C (-31°C to 248°C ) |
||||
| Cooling-without humidity(Min.) |
60 From 20°C to -35°C (68°F to -31°F) |
85 From 20°C to -35°C
(68°F to -31°F) |
|||||
| On single point control | |||||||
| Refrigeration | System | Mechanical single stage refrigerator system (air-cooled condenser) |
Mechanical dual stage refrigerator system (air-cooled condenser) |
||||
| Refrigerant |
R-404A
|
R-404A (1st step), R-23 (2nd step) |
|||||
| Capacity(W) |
1500
|
4250
|
6000
|
||||
| Cooler | Plate fin cooler | ||||||
| Heater | Material | Ni-Cr Wire Heater |
SUS TUBE Heater
|
||||
| Drying bulb(W) |
2000
|
3000
|
5000
|
||||
| Temperature sensor |
Pt 100
|
||||||
| Materal | Interior |
Stainless steel #304
|
|||||
| Exterior |
Stainless steel #304
|
||||||
| Insulation |
Polyurethane foam 100mm (3.94”)
|
||||||
| Door |
Glass wool
|
||||||
| Air flow | Tangent blower (90W) | 4 sets of sirocco fan (4 X 90W) | |||||
| Dimensions (WxDxH) |
Interior (mm/inch) |
500x630x 600 / 19.7x24.8 x23.6 |
600x630x 800 / 23.6x24.8 x31.5 |
600x850x 800 / 23.6x33.5 x31.5 |
1000x800x 1000 / 39.4x31.5 x39.4 |
1000x1000x 1000 / 39.4x39.4 x39.4 |
1000×1000×
1500 / 39.4×39.4 ×59.1 |
| Exterior (mm/inch) |
1025x1035x 1530 / 40.4x40.7 x60.2 |
1120x1070x 1730 / 44.1x42.1 x68.1 |
1120x1240x 1730 / 44.1x44.8 x68.1 |
1570x1245x 2060 / 61.8x49.0 x81.1 |
1570x1445x 2060 / 61.8x56.9 x81.1 |
1570×2045×
2050 / 61.8×80.5 ×80.7 |
|
| Viewing windows (mm/inch) |
200X300 / 7.9X13.0 | 270X330 / 10.6X13.0 | |||||
| Net weight (kg/lbs) |
310 ±10 / 683.4 ±22.0 |
375 ±10 / 826.7 ±22.0 |
400 ±10 / 881.8 ±22.0 |
610±10 /
1345±22.0 |
670±10 /
1477±22.0 |
750±10 /
1653.5±22.0 |
|
| Cable access hole | Basically one hole provided/ Ø 50mm (2.0") Optionally max. two holes available/ Ø 50 or 80mm (2.0 or 3.2") |
||||||
| Interface | Basically RS-23C [RS-485(Maximum 9 Units Control)-Optional] | ||||||
| Electrical Requirements (230V, 60Hz) |
1ph / 16.2A
|
-
|
-
|
||||
