Rutulinis malūnėlis Fritsch Pulverisette 0
Maksimalus mėginio kiekis: 10 ml;
Susmulkintos dalelės dydis iki: 10 µm;

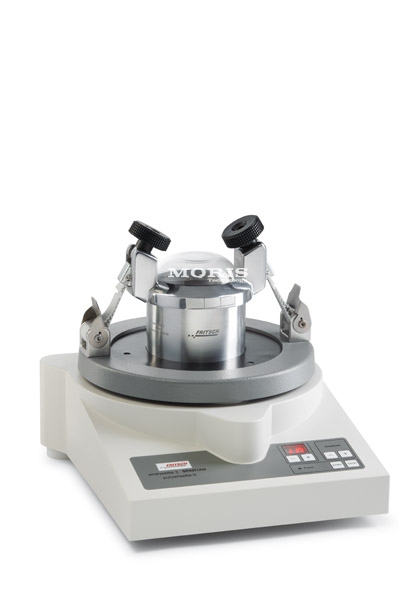

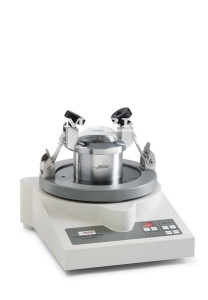

Fritsch Pulverisette 0
For fine milling of small samples dry or in suspension. For homogenization of emulsions or pastes. Convertible to dry and wet sieving.
Typical fields of application
Analytical Chemistry, X-ray and Spectroscopic Analysis, Electron Microscopy, IR Spectrophotometry, Nuclear Research, Trace Analysis, Mineralogy, Microbiology.
Method of operation
The laboratory sample is ground through the combination of impact and friction.
Features of performance
- size reduction in a narrow, homogeneous range of grain size
- modular system permits simple conversion to dry
- or wet-sieving - safety tested in accordance with TÜV (CE mark)
- 2 year guarantee
Equipment
The grinding cover (inc. in the instrument price) belongs to the standard equipment of the Vibratory Micro Mill. Grinding mortars and grinding balls are available in 6 different materials and must be ordered as accessories.
Technical Data |
Electrical details: | 100-240 V/1~ |
Frequency: | 50-60 Hz |
input power: | 50 W |
Working Principle: | impact force |
External drive: | no |
grinding process: | dry /wet |
Speed of main disk resp. Oscillations grinding bowl: | 3000-3600 oscillations/min. at 1-3 mm amplitude |
Max. feed size depending on the material: | 5 mm |
Feed quantity: | 10 ml |
Final fineness: | 5 - 10 µm |
Over All Dimensions (WxDxH): | Table instrument: 37x40x20 cm |
Weight net: | 21 kg |
Weight gross: | 22 kg |
suitable for the following sample materials: | medium-hard, brittle, temperature-sensitive, moist |
