Savybės:

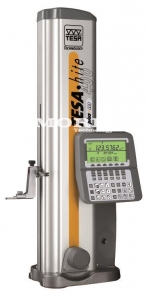

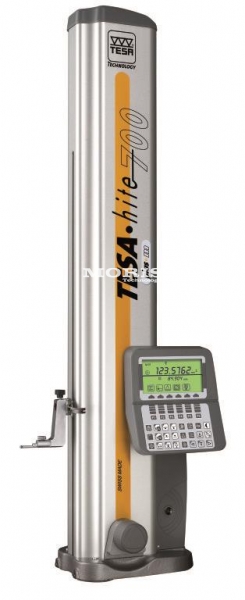

• The TESA Hite Plus M (motorized) 400/700 are universal height gauges for use in the measuring room as well as in the workshop with the best price-performance ratio. The TESA-Hite is equipped with an integrated air cushion for easy movement. The user-friendly, intuitive control unit is very suitable for 1D and 2D measurements, automatic programming of measurement cycles and statistical data processing.
• Measuring range: 405 and 705 mm resp.
• Weight: 779.046: 27 kg, 779.047: 32 kg.
• Max. range with standard probe holder: 560 and 860 mm respectively.
• Protection: IP40, control panel: IP65.
• For optional probes and accessories see "Probes and accessories TESA Micro-Hite / TESA-Hite".
• Max. range with long probe holder (782.358): 785 and 1085 mm respectively.
• Resolution: 0.0001 / 0.001 / 0.01 mm.
• Accuracy: ± (2.5 + 0.003 L) µm ( L in mm).
• Repeatability: ≤ 1 µm (flat surfaces), ≤ 2 µm (bores).

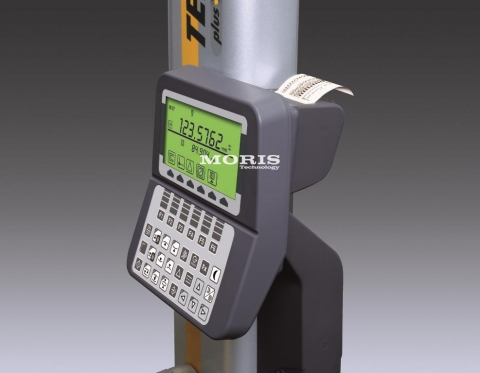

• Easy-to-read LCD-display.
• RS232C data output.
• Integrated air cushion.
• Max. measuring speed: 600 mm/s (manual) and 40 mm/s (motorized).
• Measuring force: 1.0 ± 0.5 N.
• Squareness (frontal): 8 and 12 µm resp.
• Operating temperature: 10 to 40°C.
