• Small size & light weight.
• Compact design with high performance.
• Efficient system with durable materials.
The evaporating system for better thermal efficiency with corrosion-resistant materials.
The heating system with minimized potential heat when heating or cooling for prompt reaction time and
advanced performance.
• Stainless steel interior
High quality & Corrosion-resistant
• Water tank for easy water supply.
Maintenance can be done easily from the front side. (Optional Direct water system.)

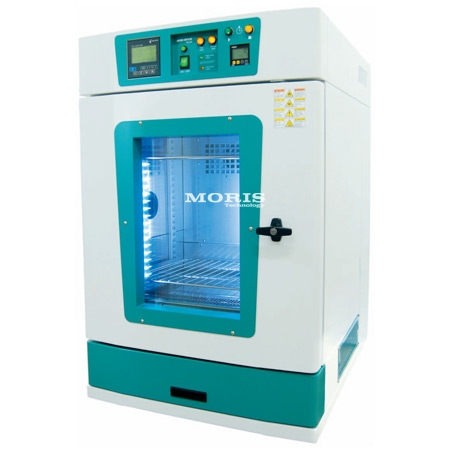

• Large viewing window
A tempered glass door provides a clear view of your specimen during testing.
• Vice lock type door catch and foamed silicone packing ensure perfect chamber seal.
• Cable port for running in wires.
Basic hole of 50mm diameter cable port is standard equipped on left side of chambers for wiring to the
specimen. We can also provide additional 50 or 80mm diameter cable port. (optional)
• Optional stand for space-saving layout.
For use in limited space, we provided stand with casters for staking up two chambers.
Be sure to secure the stand onto floor with earthquake resistant fitting for your safety when using stand.

Relative humidity - Temperature range

Control operation

• Intuitive Control Panel.
Sight Lamp, Window Clean, Water Level indicators.
• Microprocess PID control / Auto-tuning / Calibration.
Precise temperature & humidity control.
Faster fingerprints development.
Rapid recovery time after door openings.
• Digital LCD display with touch-sensitive 7 keypads.
• Easy operation with wide LCD screen.
Temperature & humidity / timer settings and operating condition.
• Digital Timer with acoustic alarm.
Start / Stop button for easy operation.
Digital display for time remaining.
Set time expiring alarm.
• Programming operation.
• The program patterns are memorized for 10 years even though the main powers switch off, thanks to a
PCB built-in battery.
• Expansionary parameters inputting.
(Conveniently display by letters.)
• Computer interface.
Available to save all data in Excel.
Provide software.
The program information, setting values backup / recovery, and temperature / humidity values memory.
RS-232C as standard offer.
• Recorder. (Optional)
6-point dots type recorder with digital display.

Safety functions

• Key lockable door for your evidences.
• Leakage breaker for power supply.
• Over current protector.
• Overheat protector.
• Switch-off after alarm for overheating.
• Door open warning alarm.
• Water empty.

Accessories and options

	Viewing Window A observation window is installed ONLY on all floor type chambers. (TH/ TC series and TH-CR-270) A tempered dual windows provided a clear view of your specimen during testing. Improved lighting provided.
	Inner door A inner glass door is provided inside the chamber door so that specimens can be observed. Applicable to some of floor type chambers. (TH-G, I-180, 300, 408L/ TC-180, 300, 408L and TH-CR-270 ONLY) All of the tabletop chambers are provided one inner glass door.
	Temperature and Humidity recorder (digital) Recording range: -60 to 150?/ 0 to 100% RH Paper wide: 100mm Portable type 6 dots (Temperature: 5 dots, Humidity: 1 dot) Digital display Free power supply (100V to 240V)
	Access Port A through hole of 50 or 80mm dia. (2.0 or 3.2" dia.) is provided on the wall of chamber to allow electrical cables to be introduced into the chamber. A 50mm hole is provided, maximum two holes (50 or 80mm) are optional. Equipped with rubber plug. Standard 50mm hole is on the left side.
	Water Supply Water supply system to supply pure water for humidification. Cartridge type water tank for easy water supply Maintenance can be done easily from the front side A center window allow to check the amount of water remaining easily
	Shelf Wire and perforated type shelves (included shelf brackets) are made of durable stainless steel. Standard specification shelves and shelf brackets are added as required.
	Warning Signal Light A signal light to light up when malfunction occurs. Can be located upper plate of unit.

? 80mm cable access hole is NOT available for 25L chamber. (TH-ME/PE-25, TC-ME-25)

Specifications

Accessories & Options

Viewing Window A observation window is installed ONLY on all floor type chambers. (TH/ TC series and TH-CR-270) A tempered dual windows provided a clear view of your specimen during testing. Improved lighting provided.

Inner Door A inner glass door is provided inside the chamber door so that specimens can be observed. Applicable to some of floor type chambers. (TH-G, I-180, 300, 408L/ TC-180, 300, 408L and TH-CR-270 ONLY) All of the tabletop chambers are provided one inner glass door.

Temperature and Humidity Reconrder(Digital) Temperature and Humidity recorder (digital) Recording range: -60 to 150?/ 0 to 100% RH Paper wide: 100mm Portable type 6 dots (Temperature: 5 dots, Humidity: 1 dot) Digital display Free power supply (100V to 240V)

Access Port A through hole of 50 or 80mm dia. (2.0 or 3.2" dia.) is provided on the wall of chamber to allow electrical cables to be introduced into the chamber. A 50mm hole is provided, maximum two holes (50 or 80mm) are optional. Equipped with rubber plug. Standard 50mm hole is on the left side.
