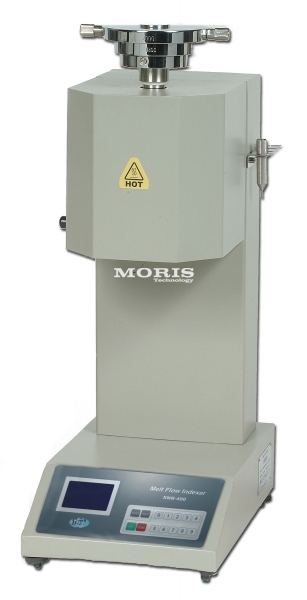

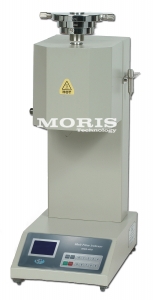

The Melt Flow Indexer is an affordable tabletop instrument that tests the melt flow resistance (MFR) of a wide range of thermoplastics. The tester conforms to all National and International melt flow resistance standards, including BS EN ISO 1133 and ASTM D1238. Any temperature within 120°C-450°C (248°F-842°F) can be accurately controlled.

Specifications:

• Temperature control: 120 ºC - 450 ºC (248 ºF - 842 ºF) can be accurately controlled
• Accuracy: ±0.2°C
• Dimensions: 26 x 40 x 63 cm
• Weight: 27 kg
• Power: 220V 60 Hz

Features:

• Built-in microprocessor maintains temperature control to within ±0.2ºC (±0.4ºF), with rapid ramp-up to set point.
• Temperature fluctuation is ±1% of set temperature.
• Extruded material automatically cut-off by built-in scraper mechanism at preset intervals, ontrollable to ±0.01 seconds.
• Clear multi-line LCD display and tactile-feedback membrane keypad allow fast, accurate input of test parameters and provide continuous display of settings during testing.

Included weight kit:

• 1 x 600 g
• 1 x 875 g
• 1 x 960 g
• 1 x 1000 g
• 1 x 1200 g
• 1 x 1640 g
• 8 x 2000 g

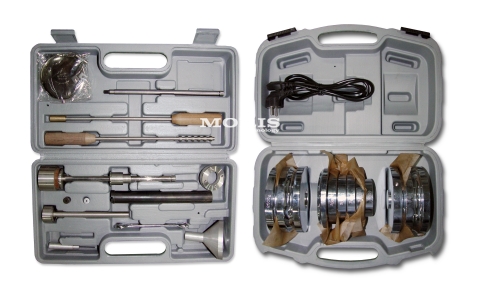

Included accessory kit:

• 2 Piston Rods
• 2 Tungsten Carbide Dies
• 1 Die Ejector
• 3 Replacement Cut-Off Knives
• 1 Cleaning Tool
• 1 Charging Tool
• 1 Level Meter
• 1 Guide Bushing
• 1 Filling Funnel
• 2 Cylinders
• 1 Die Cleaning Tool
