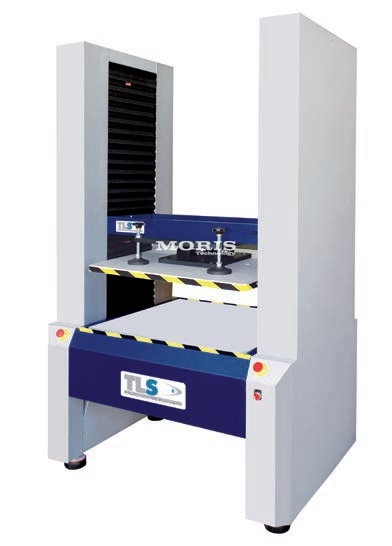

Designed for testing compressive strength in Packing and Packaging specifications according to international standards. Designed for medium sized packages.

• Robust construction
• Max. Force: 30 kN
• 3 Load cells for highest accuracy
• Digital Display for load & deflection (in PC)
• Platen size: 1000 x 1000 mm
• Oscillating (ISO-FEFCO) & Fixed Plate (TAPPI)Precision Ball Screw drive system
• Top fixed and parallel plate  (TAPPI)
• Max. Opening: 1000 mm
• Force reading in N - Kg & Lb
• Deflections reading: mm/in.
• Automatic return to test position
• RS-232 data output
• PC Closed Loop Control
• Includes Eee PC Touch Screen 20"
• LYNX testing software
• Compatible with the widely popular Quality Management software package

Standards:

• ASTM D642
• ASTM D4169
• TAPPI T804
• DIN EN 22872
• ISO 12048
• FEFCO 50
• ISTA
