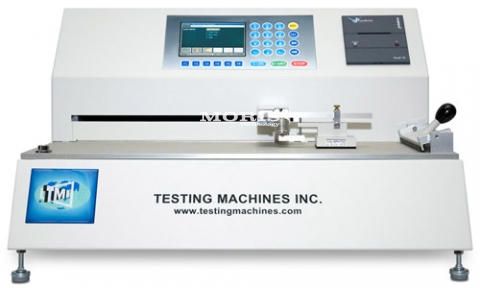

Slip and Friction Tester 32-07
Adhesive and Label Testing, Coating Testing, Film and Foil Testing, Food Testing, Ink and Printability Testing, Package Testing, Paper and Tissue Testing, Plastic Testing, Rubber and Foam Testing, Surface Property Testing
Description
For over 30 years, Testing Machines, Inc. has had a history of producing reliable, accurate and robust testing instruments for measuring coefficient of friction. The model 32-07 is our latest design offering advanced features for measuring and automatically calculating static and kinetic coefficient of friction.
Slip and friction testing aids in the evaluation of chemicals and additives used to create or minimize the degree of friction between two contacting test specimens.
Specifications::
- Selectable speed from 5 to 50.8 cm per minute (2 to 20 in per minute)
- Selectable travel distance from 2.5 to 30.5 cm (1 to 12 in.)
- Load cell: 10 newtons (1 kg, 2.2 lbs)
Features:
- Digital display, storage and editing of up to 100 readings, and selectable units (COF or grams)
- Settable limits
- Statistics-average, standard deviation, high/low results.
- Report printout with built-in printer
- RS-232
- Static and kinetic coefficient of friction calculated in one operation.
- Direct drive arm with unique skid control.
- Sled-connecting mechanism ensures level pulling action.
- Easily interchangeable sleds.
- Full color, easy-to-read display:
- Weight: 25 kg
- Dimensions: 515 mm x 495 mm x 508 mm
