To determine the energy absorbed or resistance to the corrugated board and compact, especially those employed in the manufacture of packaging.
According to standards: ISO 3036 - SCAN P23 - DIN 53,142 - TAPPI T-803 - ASTM D781 - FEFCO 5 - 57,076 UNE

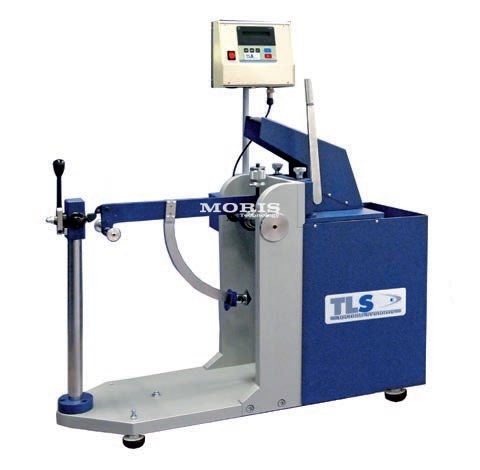

• Strong frame in steel, designed  to avoid any vibrations during test
  (Subsequently, energy losses are avoided)
• Pendulum arm with a circular angle of 90º
• Striking head in the shape of a triangular pyramid
• Disengaging mechanism, with security system
• Security cover screen
• Self-tightening grips with adjustable closing pressure to clamp the sample
• 4 reading scales of units in Joules
• Compatible with Quality Integral Management LYNX Plus & ProSystem

Standards:

• ISO 3036
• TAPPI T803
• SCAN P23
• FEFCO 5
• DIN 53142
• ASTM D781
