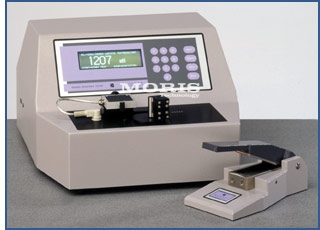

Model 79-25 is a user-friendly microprocessor controlled instrument to determine the bending resistance of paper, paperboard, plastic film, medical tubing, and wire. Bending stiffness is a characteristic associated with the rigidity of a material. This property is related to the modulus of elasticity of the material's stiffness. Our Bending Tester was originally developed to produce a more concise, consistent measurement for the paper industry. This property is now used in a variety of industries including personal products, paper, flexible films, packaging and non-wovens.

Technical data:

• Ranges: 0- 1000 mN or 0-10 mN (Please specify)
• Min. force sensitivity: 0.5mN with 1000mN load cell
• Accuracy: +/- 1%
• Specimen Width Bend Angle: up to 38 mm, 4 mm opening 5.0 – 90.0 degrees (selectable in 0.1 steps)
• Accuracy ± 0.1 degree
• Speed: 5º/ second
• Bending length: motorized setting with 6 automatic stops
• Bending positions: 5mm - 10mm - 15mm - 20mm - 25mm and 50mm.
• Clamp:  pneumatic operated , 38mm wide with 4mm gap.
• Electronic Output: GraphMasterTM compatible RS232 serial data output with 9 pin, printer output and optional analog signal output Electrical 120 V/60 Hz or 220V/50 Hz
• Air connection: 6mm OD plastic hose
• Dimensions: Length : 490 mm Width : 425 mm Height : 260 mm Weight : ± 20 kg
• Standards: ISO 2493, AS/NZ 1301-4535, BS 3748, DIN 53121, SCAN P29, TAPPI T556
• Warranty: 24 months

Benefits:

• Very flexible for performing different types of tests and for different standards.
• Pre-certified weights and sample cutter options
• Ability to add special formulas to meet unique bending stiffness requirements”
• Competitive advantages for accuracy and usability
• Motorized testing and pneumatic clamping eliminates operator influence
