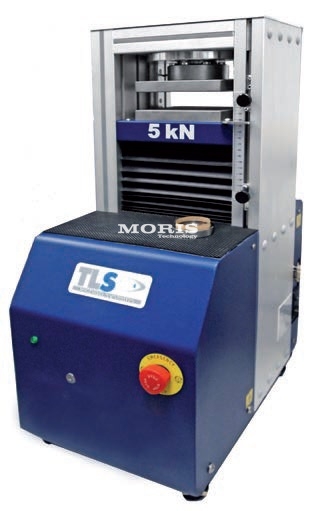

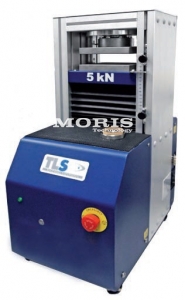

The Crush Tester is used to determine the compression strength in samples of Paper (Liner & Medium) and Corrugated Board CMT - RCT - CCT - ECT - FCT – PAT

Specifications:

• Compression platens: 150 x 150 mm
• Maximum separation between platens: 140 mm
• Parallelism error between plates < 1/4000 mm
• 1 central spindle drive with lateral guidance of the lower platen
• Limit switches, adjustable by user
• Digital encoder to measure the deflection in mm. or inches.
• Operating motor without brushes which helps prevent periodic maintenance
• Test speed: between 3 and 125 mm/min
• Approaching and automatic return speed to the initial test position: 125 mm/min
• 4 anti-vibration supports that are adjustable for proper levelling of the equipme

Features:

• MBC-3200 Multifunction board for data acquisition, machine control and connection to PC, with remote access to the internet. This allows better accuracy, repeatability, durability, flexibility and ease of setup.
• 15” laptop PC interface - for Data Acquisition and Control
• LYNX Crush Test Program (*) (CMT-CCT-RCT-CLT-ECT-FCT-PAT)
• Sturdy construction and easy to use
• Adjustable test speed between 3 and 125 mm/min
• USB interface q Helps eliminate human error
• Languages: English, Spanish, German and French
• Force Range: 10 – 5000N (resolution: 0,01% = 0,5N)
•  Direct Reading in N, Kg & lb
• Statistics: Min/Max, Average and Standard Deviation
• Save, Print and Copy to Office Clipboard
• Automatic return to the initial test position of the moving plate
• E-Stop Button Included
• Digital Encoder to measure the deflection during the test in mm. or inches
• Overload protection (*) It is possible to integrate in the following ways: - LYNX Management module with basic software (one-to-one connection)) - Advanced Management Laboratory Software LYNX Plus & Pro (for multiple test equipment connection and/or users)
