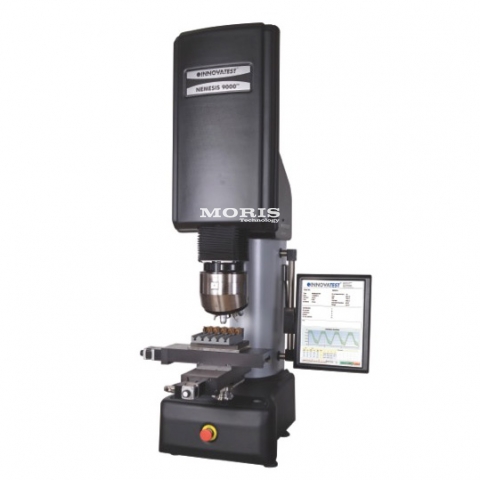

FORCE APPLICATION SYSTEM

• Linear force actuator: Standard
• Load cell, closed loop, force feed back system: Standard
• Motorized heavy duty TURRET with 6 positions: Standard
• Indentor positions: 3
• Objective positions: 3
• LED optical indent illumination: Standard
• LED ring light indent illumination: Optional

OPTICAL MEASURING SYSTEM

• 5 mega pixels optical ZOOM system: Standard
• Auto focus: Standard
• Manual focus: Standard
• Fully automatic indent measuring: Standard
• Manual on screen indent measuring: Standard
• Fully automatic indent measuring: Standard
• Zoom and magnification ratio: 0.7x to 1000x
• Dual view™ working area overview camera: Optional
• External Electronic Brinell microscope and objectives: No

DEPTH MEASUREMENT SYSTEM

• Heidenhain™ high resolution optical system: Standard

HARDWARE & USER INTERFACE

• Built-in industrial Pentium PC and harddrives (RAID1): Standard
• Adjustable 15'' full color industrial touch screen: Standard
• MS Windows 7 Ultimate license: Standard
• IMPRESSIONS™ hardness testing firmware: Standard
• Automatic image and file storage: Standard
• Stores and handles 3000 files & images: Standard
• Stores and handles 9000 files & images: Optional
• Forms™ set of customized certificates: Optional
• Universal motorized X-Y stage controls: Standard

CONNECTIVITY

• External digital (DVI) LCD screen output: Optional
• External keyboard & mouse connections: Standard
• LAN (local area network connection): Standard
• WLAN (Wireless network connection): Standard
• Bi-directional RS-232: Standard
• Printer / USB-2 output: Standard

MORE SPECIFICATIONS

• Test forces 1kgf/9.8N to 250kgf/2.45kN
• Hardness resolution 0.01 Rockwell, 0.1 Vickers, 1 Brinell
• Test loads: 1kgf/9.8N, 2kgf/19N, 2.5kgf/24N, 3kgf/29N, 4kgf/39,2N, 5kgf/49N, 6.25kgf/62N, 10kgf/98N, 15.625kgf/153N, 20kgf/196N, 25kgf/245N, 30kgf/294.2N, 31.25kgf/306N, 50kgf/490N, 62.5kgf/612N, 100kgf/980.7N, 120kgf/1176N, 125kgf/1225N, 187.5kgf/1838N, 250kgf/2.45kN
• Rockwell test scales A, B, C, D, E, F, G, H, K, L, M, P, R, S, V, 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y, HRM
• Vickers test range HV: 1kgf/9.8N, 2kgf/19N, 3kgf/29N, 4kgf/39,2N, 5kgf/49N, 10kgf/98N, 20kgf/196N,30kgf/294.2N, 50kgf/490N, 100kgf/980.7N, 120kgf/1176N; HVT: 50kgf/490N, 100kgf/980.7N
• Brinell test range HB1: 1kgf/9.8N, 2.5kgf/24N, 5kgf/49N, 10kgf/98N, 30kgf/294.2N; HB2.5: 6.25kgf/62N, 15.625kgf/153N, 31.25kgf/306N, 62.5kgf/612N, 187.5kgf/1838N; HB5: 25kgf/245N, 62.5kgf/612N, 125kgf/1225N, 250kgf/2.45kN; HB10: 100kgf/980.7N, 250kgf/2.45kN; HBT: 5kgf/49N, 250kgf/2,45kN
• Indentors (optional) Brinell Balls: 1mm, 2.5mm, 5mm, 10mm; Vickers Diamond: 136°; Rockwell Diamond Cone: 120°; Rockwell balls: 1/16", 1/8", 1/4", 1/2"
• Workpiece accommodation Vertical capacity 300 mm (opt. 500 mm), Horizontal capacity 220 mm (from center-line)
• Force tolerance: Max. < 1%
• Force control: 1 - 99 sec
• Tester color (standard): Black / Metallic silver
• Light source: White power LED (Opt. green/blue/red)
• Machine dimensions: 400 mm x 650 mm x 1440 mm (WxDxH),
• Machine weight: 242 kg
• Power consumption: 1 Amp
• Power supply: 100V AC to 240V AC, 50Hz/60Hz, single phase
