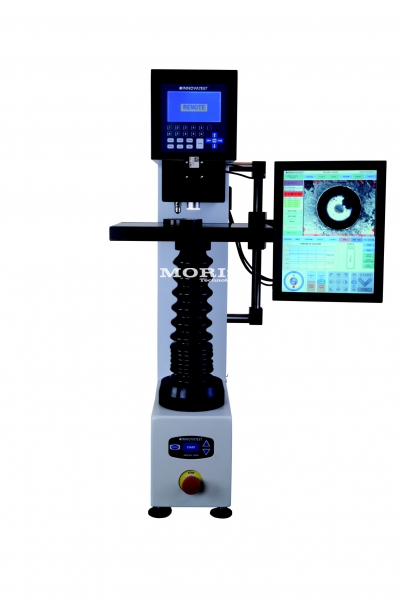

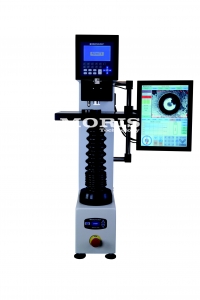

Advanced user interface with “key in” option for indent dimensions, automatic Brinell hardness calculation.Display automatically shows Brinell hardness with conversion to Rockwell, Vickers and Leeb.

• 2-Position motorized turret (indentor/objective)
• Auto-load, -indentation, -focus, -measuring, unload
• High resolution CCD camera
• IMPRESSIONS™ hardness testing software for automatic measuring and data/image storage
• Powerful PC with 15” industrial LCD touch screen, height adjustable bracket, keyboard and mouse (optional)
• Test loads 30kgf/294.2N - 3000kgf/29kN
• Hardness scales: Brinell
• Load range: 30 kgf / 294,2 N to 3000 kgf / 29 kN
• Test loads: 30 kgf / 294,2 N, 31,25 kgf / 306 N, 40 kgf / 392 N, 50 kgf / 490 N, 60 kgf / 588,4 N, 62,5 kgf / 612 N, 80 kgf / 784 N, 100 kgf / 980,7 N, 120 kgf / 1176 N, 125 kgf / 1225 N, 187,5 kgf / 1838 N, 250 kgf / 2,45 kN, 500 kgf / 4,9 kN, 750 kgf / 7,35 kN, 1000 kgf / 9806 N, 1500 kgf / 14,7 kN, 3000 kgf / 29 kN
• Brinell test range: HB: 30 kgf / 294,2 N, 31,25 kgf / 306 N, 62,5 kgf / 612 N, 100 kgf / 980,7 N, 125 kgf / 1225 N, 187,5 kgf / 1838 N, 250 kgf / 2,45 kN, 500 kgf / 4,9 kN, 750 kgf / 7,35 kN, 1000 kgf / 9806 N, 1500 kgf / 14,7 kN, 3000 kgf / 29 kN
• Display resolution: 0,1 HB
• Specimen accommodation: Vertical capacity - 390mm XL model; Horizontal capacity - 220mm (from center-line)
• Load cell, closed loop system
• Test loads 30kgf/294.2N - 3000kgf/29kN
• LCD display showing Brinell and Vickers value, statistics and tester settings
• Simultaneous conversion to Rockwell, Vickers, Brinell and Leeb rebound testing
• Microscope with analogue scale for indentation measurement
• Brinell microscope with LED ring light
• Connectivity for data output via RS-232
• XL version, 390mm workpiece height, 220mm throat depth
• Brinell microscope with LED ringlight
