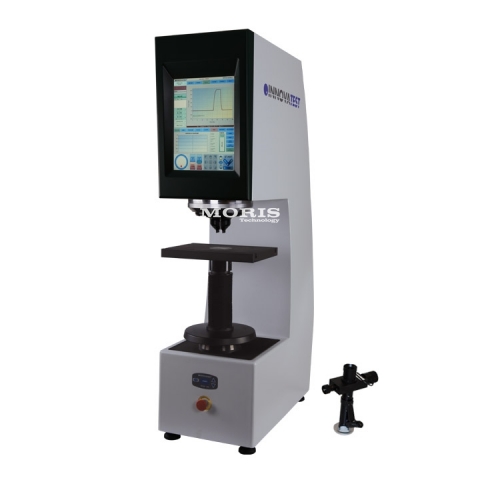

The NEXUS 8003B is a Brinell hardness tester with a test load ranging from 5kgf/49N until 3000kgf/29kN.
Beside the testing and indentation measurement with a Brinell microscope the NEXUS 8003B also has the option of Brinell depth (HBT) procedures (Model 8003HBT, Automatic Brinell hardness testing by measuring indentation depth).

• Hardness scales: Brinell
• Load range: 5 kgf / 49 N - 3000 kgf / 29 kN
• Test loads: 5 kgf / 49 N, 6,25 kgf / 62 N, 10 kgf / 98 N, 15,625 kgf / 153 N, 20 kgf / 196 N, 25 kgf / 245 N, 30 kgf / 294,2 N, 31,25 kgf / 306 N, 50 kgf / 490 N, 62,5 kgf / 612 N, 100 kgf / 980,7 N, 120 kgf / 1176 N, 125 kgf / 1225 N, 187,5 kgf / 1838 N, 250 kgf / 2,45 kN, 500 kgf /4,9 kN, 750 kgf / 7,35 kN, 1000 kgf / 9,8 kN, 1500 kgf / 14,7 kN, 3000 kgf / 29 kN
• Brinell test range: HB1: 5 kgf / 49N, 10 kgf / 98 N, 30 kgf / 294,2 N; HB2,5:   6,25 kgf / 62 N, 15,625 kgf / 153 N, 31,25 kgf / 306 N, 62,5 kgf / 612 N, 187,5 kgf / 1838 N; HB5: 25 kgf / 245 N, 62,5 kgf / 612 N, 125 kgf / 1225 N, 250 kgf / 2,45 kN; HB10: 100 kgf / 980,7 N, 250 kgf / 2,45 kN, 500 kgf / 4,9 kN, 750 kgf / 7,35 kN, 1000 kgf / 9,8 kN, 1500 kgf / 14,7 kN, 3000 kgf / 29 kN; HBT: 5 kgf / 49 N, 250 kgf / 2,45 kN
• Workpiece accommodation: Vertical capacity - 350mm; Horizontal capacity - 260mm (from center-line)
• Hardness of castings and forgings
• For flat and cylindrical work pieces
• Wide application within the automotive industry
• Heavy duty workshop testing
• Sample testing or quality control testing
