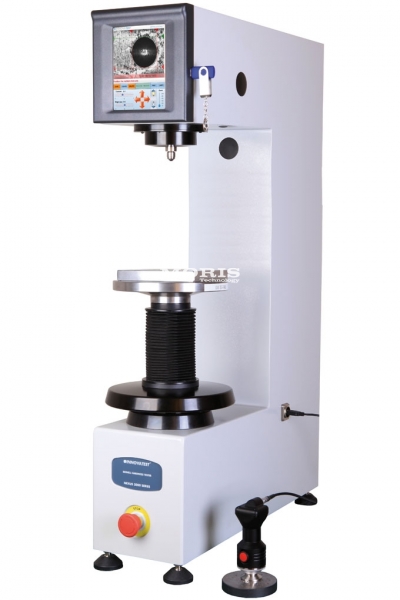

IMPRESSIONS™ is the advanced user operating system of the NEXUS 3200.
The software incorporates, manual and automatic measurement for all scales, image editing, file storing, image storing, report printing and many other advanced functions.

• Hardness scales: Brinell
• Load range: 62,5 kgf / 612 N iki 3000 kgf / 29 kN
• Test loads: 62,5 kgf / 612 N, 80 kgf / 784 N, 100 kgf / 980,7 N, 120 kgf / 1176 N, 125 kgf / 1225 N, 187,5 kgf / 1838 N, 250 kgf / 2,45 kN, 500 kgf / 4,9 kN, 750 kgf / 7,35 kN, 1000 kgf / 9806 N, 1500 kgf / 14,7 kN, 3000 kgf / 29 kN
• Brinell test range HB: 62,5 kgf / 612 N, 100 kgf / 980,7 N, 125 kgf / 1225 N, 187,5 kgf / 1838 N, 250 kgf / 2,45 kN, 500 kgf / 4,9 kN, 750 kgf / 7,35 kN, 1000 kgf / 9806 N, 1500 kgf / 14,7 kN, 3000 kgf / 29 kN
• Workpiece accommodation: Vertical capacity-190mm normal model,  390mm XL/XLM model, Horizontal capacity-220mm (from center-line), 220mm XL/XLM model (from center-line)
• imultaneous conversion to Rockwell, Vickers, Brinell and Leeb rebound testing
• Indent ZOOM function
• Fully automatic indent measurement
• BIOS equipped with LED ring light for dark field illumination
•  Connectivity USB (4), UTP-RJ45-LAN, W-LAN, RS232
• Motorized X-Y stage (optional)
• XL version, 390mm workpiece height, 220mm throat depth
• Hardness of castings and forgings
• For flat and cylindrical work pieces
• Wide application within the automotive and aerospace industry
• Foundries or workshop testing
• Sample testing or quality control testing
