• Type L Original Schmidt: Handling equals type N, but the type L offers an impact energy three times smaller

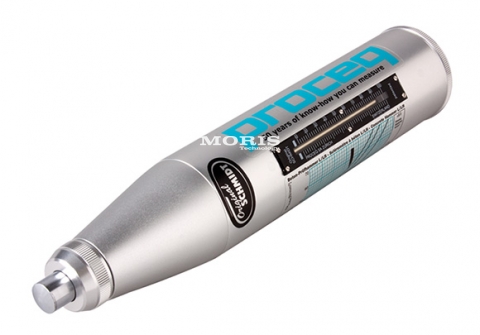

• The Original Schmidt is used for the non-destructive measurement of the concrete/mortar compressive strength characteristics
• Control of uniform concrete quality
• Detection of weak spots in the concrete
• The type L/LR Original Schmidt operates with significant lower impact energy, making this test hammer the ideal option for testing thin walled items with a thickness between 50 to 100 mm (2 in. and 4 in.) or for analyzing small components.
• It is suitable for examining cast stone components which are sensitive to impact. In rock mechanics, the type L/LR Original Schmidt is commonly used for the classification of rock cores and brittle rock

Standards:

• ISO/DIS 8045;
• EN 12 504-2; ENV 206;
• DIN 1048 part 2;
• BS 1881 part 202;
• ASTM C 805;
• ASTM D 5873 (Rock);
• NFP 18-417;
• B 15-225;
• JGJ/T 23-2001;
• JJG 817-1993

Technical data

• Measuring range: 10 - 70 N/mm2 (1'450 to 10'152 psi)
• Impact energy: 0.735 Nm

Warranty: 24 months
