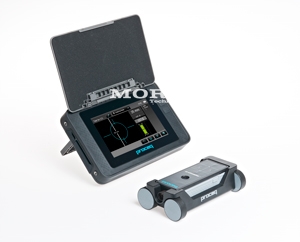

Profometer PM-600 is an advanced cover meter for the precise and non destructive measurement of concrete cover and rebar diameters and the detection of rebar locations using the eddy current principle with pulse induction as the measuring method.

Based on the new generation Profometer Touchscreen unit, the instrument offers real time control over the measurement procedure directly on site. The high resolution color display allows best possible measuring and analysis of the statistical data for an entire working day (battery lifetime > 8h).
The instrument comes along with a Universal Probe including a spot probe especially suited for areas with congested rebar arrangement such as columns, girders and slabs over columns

Features:

• Visual assistance for scanning speed and signal strength control
• Settings directly accessible on the measurement screen
• Graphical display of measured values and minimum cover set
• Change settings before and after storage
• PM-Link software for downloading saved data to a PC for analysis and export to third party applications
• All-in-one Universal Probe including standard, long range and spot probe
• Spot probe specially for areas with congested rebar arrangements
• Housing specially designed to be used on-site in harsh environments, including carrying strap, integrated stand and sunshield cover
• High resolution color display
• Battery lifetime of > 8h
• 8 GB Flash memory
• Dual core processor supporting diverse communication and peripheral interfaces
• Future proof investment through direct upgrade possibilities to upcoming Profometer products

Applications:

• Locate rebars before drilling holes
• Measuring the concrete cover depth, eg. on bridge beams
• Acceptance inspection of cover after formwork is removed
• Quality assurance in mass production of prefabricated concrete elements, eg. dock caissons
• Rebar grid examination for planned load changes on the structure
• Statistical evaluation of cover according to DBV (German Concrete and Construction Association)

Technical data:

• Cover measuring range: up to 185 mm
• Cover measuring accuracy: ± 1 mm to ± 4 mm (0.04” to 0.16”)
• Measuring resolution: depending on diameter and cover
• Path Measuring accuracy on smooth surface: ± 3 mm (0.12”) + 0.5% to 1.0% of measured length
• Display: 7” colour display 800x480 pixels
• Diameter measuring range: up to 63 mm
• Diameter measuring accuracy: ± 1 bar size
• Memory: 8 GB
• Regional Settings: Metric and imperial units and multi-language supported
• Battery: Lithium Polymer, 3.6 V, 14.0 Ah
• IP Classification: IP54
• CE certification

Warranty: 24 months
