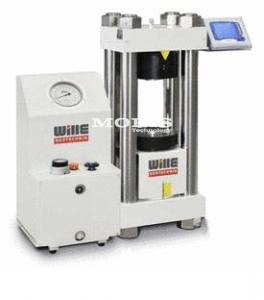

Semiautomatic Standard Compression Machine 3000 kN
for axial loads 3000 kN
for different sample sizes and shapes
for different sample sizes and shapes
Description
- for axial loads 3000 kN
- for different sample sizes and shapes
- Simultaneous display of load, stress and actual load rate in terms of load/s or stress/s
- Real time graphic display of test data, load/time curve and actual load rate
- Memory storage for about 150 tests; each test is identified by date, hour, number, operator name, type of test, type of specimen, specimen dimension, area, weight, age, load and stress of failure
- Real time clock and date
- Real time download to PC by RS 232
- File management with the possibility for display of all tests and download to serial printer or PC (two separate RS 232 ports available)
- Machine calibration access by software; password protected
- Accuracy grade 1
- Linearisation/interpolation feature, which enables the segmentation of load sensor curve (from 1 to 6 segments) and automatic interpolation
- High accuracy of the system from the beginning of the load range.
