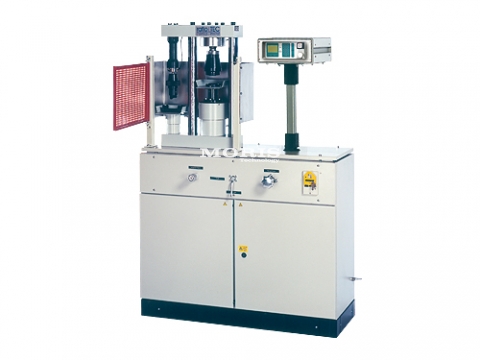

Compression-flexural testing machine RT 200/10-1D V2 200/10kN

Class 1
Acc. to EN ISO 7500-1, EN 10002-2 and EN 196

Ask a question about this product

Manufacturer:

Description

Class 1
Acc. to EN ISO 7500-1, EN 10002-2 and EN 196
With digital display, electro-pump and manual pressure valve
Max. pressure: 200 kN
Max. bending: 10 kN
Measuring range pressure: 4 - 200kN
Measuring range bending: 0,2 - 10 kN
ph pressure / bending: 50 mm
Piston stroke pressure / bending: 30 mm
Pressure plate size: 40 x 40 mm
Bending rolling Ø / length: 10 / 50 mm
Bending distance below: 100mm
Electrical power: 3 x 400 V + N + PE
Accessories:
- protective device made of perforated steel
- deformation measuring in bending room
