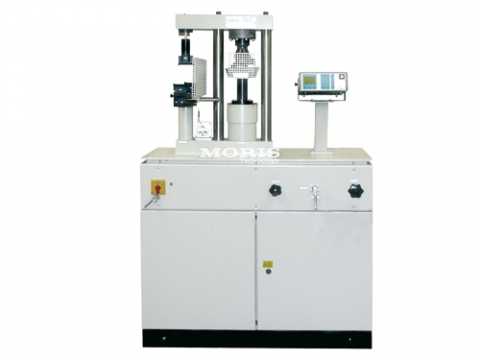

Compression-flexural testing machine RT 200/10-1D 200/10kN
Class 1;
Acc. to EN ISO 7500-1, EN 10002-2 and EN 196
Acc. to EN ISO 7500-1, EN 10002-2 and EN 196
Description
- Class 1
- Acc. to EN ISO 7500-1, EN 10002-2 and EN 196
- With digital display, electro-pump and manual pressure valve
- Max. pressure: 200 kN
- Max. bending: 10 kN
- Measuring range pressure: 4 - 200kN
- Measuring range bending: 0,2 - 10 kN
- ph pressure / bending: 50 mm
- Piston stroke pressure / bending: 30 mm
- Pressure plate size: 40 x 40 mm
- Bending rolling Ø / length: 10 / 50 mm
- Bending distance below: 100mm
- Electrical power: 3 x 400 V + N + PE
