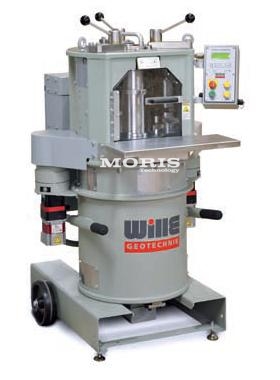

Gyratory compactor Wille Geotechnik A1102
Standard: EN 12697-31, AASHTO T312, ASTM D6925
Description
- Standard: EN 12697-31, AASHTO T312, ASTM D6925
- Robust testing device with electro-drive and stiff test chamber
- For specimen sizes dia. 100 x h. 200 mm and dia. 150 x 250 mm
- Compression pressure 200 to 1000 kPa, speed of Gyration 30 ±0.5 rpm
- Digital control unit with user-friendly menu for test parameter setting and calibration
- Programmable angle of gyration, operates at internal or external angle
- The actual measuring values of gyration number, specimen height, angle and pressure are shown on the display and stored during the compaction process
- The divice is network compatible and includes an USB data port, the test data can be saved to a USB memory stick or printed directly with the optional printer kit
- Built in specimen extruder
