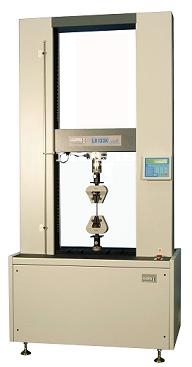

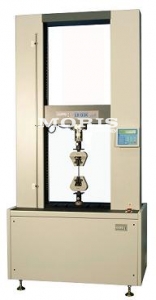

Materials Testing Machine Lloyd LR100Plus 100kN
Force Range: 100kN (22000lbf);
Crosshead Speed: 0.01 to 510 mm/min 0.0004 to 20 inches/min;
Speed Accuracy:
Crosshead Speed: 0.01 to 510 mm/min 0.0004 to 20 inches/min;
Speed Accuracy:
Description
- Force Range: 100kN (22000lbf)
- Crosshead Speed: 0.01 to 510 mm/min 0.0004 to 20 inches/min
- Speed Accuracy: < 0.1% at steady state
- Stroke: 1 to 1200mm 0.05 to 47 inches
- Load Resolution: < 0.005% of load cell used (max)
- Extension Resolution: < 0.1 microns
- Sampling Rate: 100Hz
- Extensometer Inputs: +10V dc analogue input
- Strain gauge input optional
- Data Outputs: Digital - RS232 Analogue - 10Vdc max
- Measuring System: Exceeds the requirements of BS EN ISO 7500: 1999. Class 0.5, ASTM E4, DIN 51221.
- Analysis Software: NEXYGEN™ Data Analysis Software (optional)
- Supply Voltage: 115/230Vac ± 10% 50 - 60Hz
- Weight: 900Kg (1980lb)
- Operating Temp: 5° to 35°C (40°F to 95°F)
- Simple to set-up, operate and maintain
- High accuracy load measurement
- Rapid data aquisition
- Extension resolution better than 0.1 microns
- Exceeds national and international standards
- Constant load and strain rate control
- Large testing area
- Multi lingual
- Multi unit display options
- Full PC integration
- Wide selection of load cells, grips, jigs and accessories
