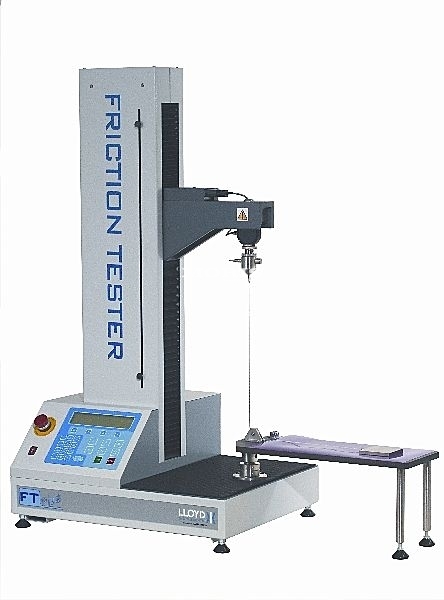

Digital Friction Tester LLoyd Instruments FTPlus P
Force Capacity: 1 kN (225 lbf);
Maximum Crosshead Travel: 500 mm (19.7 in);
Crosshead Speed Range: 0.05 to 1270 mm/min (0.002 to 50 in/min)
Maximum Crosshead Travel: 500 mm (19.7 in);
Crosshead Speed Range: 0.05 to 1270 mm/min (0.002 to 50 in/min)
Description
- Force Capacity: 1 kN (225 lbf)
- Maximum Crosshead Travel: 500 mm (19.7 in)
- Crosshead Speed Range: 0.05 to 1270 mm/min (0.002 to 50 in/min)
- Maximum Return Speed: 1270 mm (50 in/min)
- Speed Accuracy: <0.2% at steady speed
- Load Cell Accuracy: <0.5% of reading
- Extension Resolution: < 2 microns
- Data Sampling Rate: 8 kHz
- Display: 40 character x 4 line backlit LCD
- Extensometer Inputs: Digital and analogue
- Load Measuring System: Exceeds the requirements of EN ISO 7500:2004 Class 0.5 ASTM E4 Weight (inc. friction table): 36.2 kg (79.8 lb) Humidity: 5-85% RH (Non-condensing)
- Conforms to international standards for friction testing including ASTM, ISO and TAPPI
- Dedicated friction table supplied
- Dedicated user interface for calculating static coefficient of friction, kinetic coefficient of friction, peak and average load
- Can perform user configurable tests plus seven tests available for custom configuration
- Intuitive user interface
- Menu driven with intelligent prompt
- Membrane keypad with tactile feedback
- High resolution, backlit LCD display
- Saves up to 600 test results
- Universal eye end
- XLC load cell options: 10 N, 50 N and 100 N (Accuracy 0.5% of reading)
