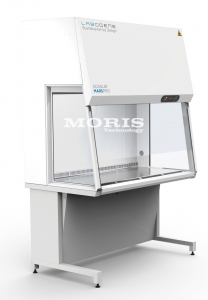

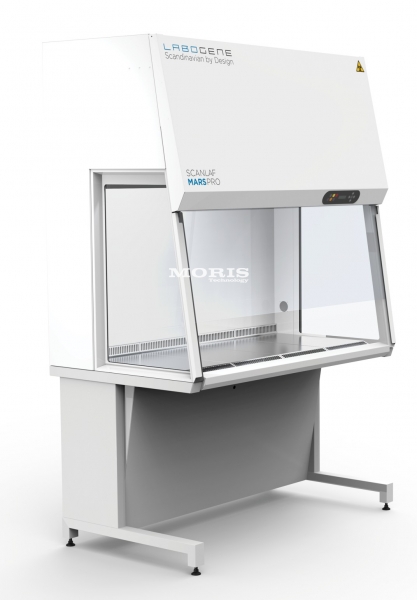

Microbiological Safety Cabinet ScanLAF MARS M1800 PRO
Light intensity variable: 0-2000 Lux
3 HEPA filters: H-14
3 HEPA filters: H-14
Description
- External dimension (DxWxH): 798x1903x1248 mm
- Working chamber dimensions (DxWxH): 650x1800x720 mm
- Front opening, fixed: 200 mm
- Working, height: 750 - 1050 mm
- Air velocity, vertical flow: 0,35 m/s
- Air velocity, deviation: 10 ±%
- Down Flow rate: 1500 m3 /h
- Noise level, ISO6081: <55 dB(A)
- Light intensity variable: 0-2000 Lux
- 3 HEPA filters: H-14
- Voltage/frequency: 220/50 or 115/60 V/Hz
- Power: 800 W
- Fuses: 10 A
- Net weight: 300 kg
- Window material: hardened/lami nated glass
- Cabinet material: polyestercoated /AISI 304 stainless steel
The ScanLaf Mars GS is approved with the following options:
- Max. 2 pcs Electrical outlets in each side panel (left and right)
- Max 3 pcs gas valves in each side window
- UV-light
- Marble stone built-in the table top for supporting a balance.
Options: •
- UV light mounted on the front wall above the front window.
- Protective ground sockets 230V ~ / 4A installed in the side panels.
- Valves for various gasses i.e. gas, nitrogen (N2) vacuum, or Carbon dioxide (CO2), a maximum of 3 installed in each side window.
- Exhaust valve for connection to the exhaust system consult your dealer for detailed information.
- Double HEPA-filter exhaust system as specified by BS 5726-(92).
- Carbon filter exhaust system takes organic solvents when doing recirculation Please contact our sales department for information regarding other available options.
The safety cabinet consists of:
- Fan and filter compartment and return air duct (double back wall) made of polyester-coated sheet steel
- Support stand made of polyester-coated sheet steel and equipped with leveling feet.
- Work chamber with tabletop and trough in stainless steel (AISI 304)
- Side windows and sliding front window all in safety glass.
- Internal ventilation system with negative pressure plenum.
- Microprocessor control and supervision system
- Mars Pro prefilter cabinet is made in polyester-coated sheet steel
- Mars Pro prefilter holder are made in stainless steel (AISI 304)
- The air distributor after the main HEPA filter covers the entire ceiling surface thus giving an extremely uniform airflow.
- The trough will collect and hold any spillage of fluids. A drain valve can be installed
- Mars Pro has installed drain channels between the tabletops to avoid spills into the prefilters
- The installation zones in the back wall can be equipped with electric outlets.
- The side windows come with holes for installation of valves.
- The stainless steel modular tabletop is easily removed for cleaning.
- The internal light is installed between the air distributor and the main filter. This secures that the light is glare-free and the airflow is turbulence free.
