• External dimension (DxWxH): 798x1603x1248 mm
• Working chamber dimensions (DxWxH): 798x1603x1248 mm
• Front opening, fixed: 200 mm
• Working, height:  750 - 1050 mm
• Air velocity, vertical flow:  0,35 m/s
• Air velocity, deviation: 10 ±%
• Down Flow rate: 1300 m3 /h
• Noise level, ISO6081:  <55 dB(A)
• Light intensity variable: 0-2000 Lux
• 2 HEPA filters: H-14
• Voltage/frequency: 220/50 or 115/60 V/Hz
• Power: 700 W
• Fuses: 10 A
• Net weight:  275 kg
• Window material:  hardened/lami nated glass
• Cabinet material: polyestercoated /AISI 304 stainless steel

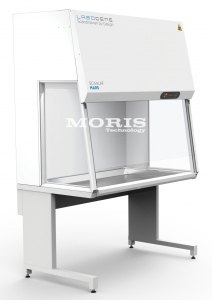

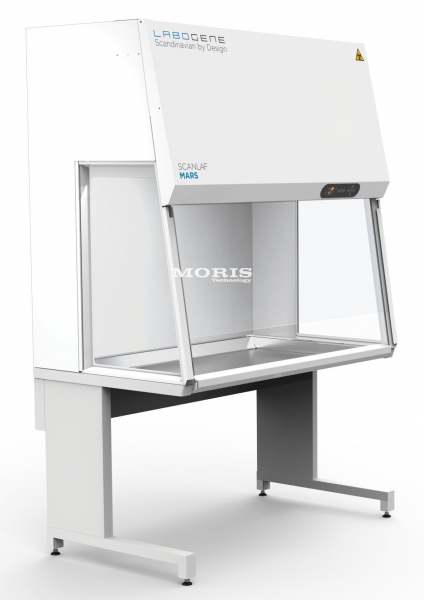

The ScanLaf Mars GS is approved with the following options:

• Max. 2 pcs Electrical outlets in each side panel (left and right)
• Max 3 pcs gas valves in each side window
• UV-light
• Marble stone built-in the table top for supporting a balance.

Options: •

• UV light mounted on the front wall above the front window.
• Protective ground sockets 230V ~ / 4A installed in the side panels.
• Valves for various gasses i.e. gas, nitrogen (N2) vacuum, or Carbon dioxide (CO2), a maximum of 3 installed in each side window.
• Exhaust valve for connection to the exhaust system consult your dealer for detailed information.
• Double HEPA-filter exhaust system as specified by BS 5726-(92).
• Carbon filter exhaust system takes organic solvents when doing recirculation Please contact our sales department for information regarding other available options.

The safety cabinet consists of:

• Fan and filter compartment and return air duct (double back wall) made of polyester-coated sheet steel
•  Support stand made of polyester-coated sheet steel and equipped with leveling feet.
• Work chamber with tabletop and trough in stainless steel (AISI 304)
• Side windows and sliding front window all in safety glass.
• Internal ventilation system with negative pressure plenum.
• Microprocessor control and supervision system
• Mars Pro prefilter cabinet is made in polyester-coated sheet steel
• Mars Pro prefilter holder are made in stainless steel (AISI 304)
•
• The air distributor after the main HEPA filter covers the entire ceiling surface thus giving an extremely uniform airflow.
• The trough will collect and hold any spillage of fluids. A drain valve can be installed
• Mars Pro has installed drain channels between the tabletops to avoid spills into the prefilters
• The installation zones in the back wall can be equipped with electric outlets.
• The side windows come with holes for installation of valves.
• The stainless steel modular tabletop is easily removed for cleaning.
•  The internal light is installed between the air distributor and the main filter. This secures that the light is glare-free and the airflow is turbulence free.
