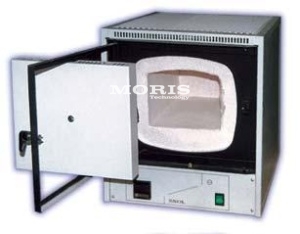

SNOL 13/1100 ashing furnace with vacuumed ceramic fiber chamber, is designed for ashing and burn off processes up to 1100°C. Fan-assisted chimney permits to eliminate smokes from chamber during process time.

Basic model:

• One-piece high thermal efficiency vacuumed ceramic fiber chamber,
• Heating elements are embedded in vacuum formed fiber in four sides around a chamber,
• Fan-assisted chimney for smoke and humidity extraction
• Continuous air change in the chamber
• Door opens upwards,
• Door safety switch,
• Microprocessor – controlled thermoregulator
• Outside casing in metal sheet, powder painting grey,
• High quality, ecological thermal insulation material
• Low electric power consumption
• Short heating up/cooling down period
• High degree of accuracy
• 1 year guarantee.

Specification:

• Useful volume: 13 l
• Rated power not more than: 1,8 kW
• Rated supply voltage: 220 V
• Rated frequency: 50 Hz
• Maximum  temperature: 1100°C
• Continuous operating temperature: 50-1100°C
• Weight: 45 kg
• Working chamber material: Fiber muffle
• Maximum heating- up time (without charge): 50 min
• Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than: ±1°C
• Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than: ± 10°C
• Furnace working chamber dimensions: 230 x 350 x 180  mm
• Furnace external dimensions: 500 x 670 x 550 mm
