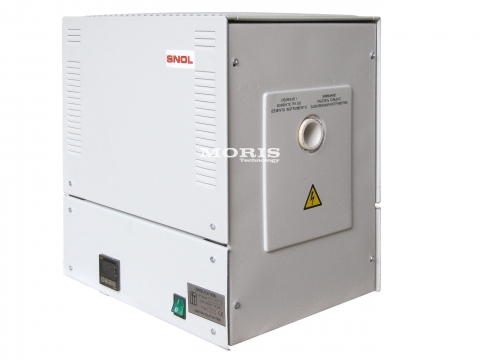

High temperature horizontal electric tube furnace SNOL 0,2/1250 is designed for materials heat treatment up to1250◦C. This model is reliable with robust ceramic chamber (tube). Furnace equipped with covers of tubes. Furnace can be used in laboratories, medicine, educational institutions, and industry.

Basic model:

• Ceramic tube chamber
• Microprocessor-controlled thermoregulator
• High-quality, ecological thermal insulation material
• Low electric power consumption
• Short heating up/cooling down period
• High degree of accuracy
• Exterior painted with powder coating (RAL 7035)
• 1 year guarantee

Specification:

• Useful volume: 0,2 l
• Rated power not more then: 3.3 kW
• Rated supply voltage: 230 V
• Rated frequency: 50 Hz
• Maximum  temperature: 1250°C
• Continuous operating temperature: 50-1250°C
• Wight: 19 kg
• Working chamber material: ceramic
• Working chamber surroundings: air
• Maximum heating- up time (without charge): 50 min
• TTemperature stability in working chamber at rated temperature in thermal steady state without charge not more than: ±2°C
• Furnace working chamber dimensions: 35 x 200  mm
• Furnace dimensions: 470 x 340 x 480 mm
